Ultrasonic tank size 900*560*900mm (L*W*H) .
Option :With lifting filtration system.
Ultrasonic power :4500W .
Tank capacity :560L
Used : For Tire Cleaning Machine Car Wheel
Frequency :28khz or 40KHZ
Heating power :12KW
2 year warranty.
With 3 set generator control
Tank size of the machine also can be customized according to the size of the kinds of tires.
New innovative technology for tyre cleaning.
Different from traditional tire cleaning method, ultrasonic cleaner has been designed in an innovative way to meet the needs of most demanding customers. Without risk of scratching the surface by mechanical abrasion, and also Efficient and environmentally friendly

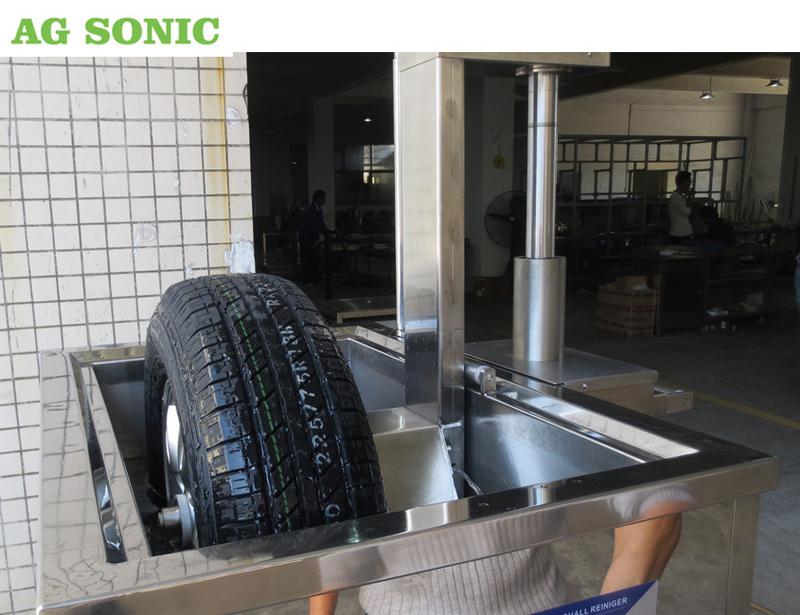

Ultrasonic Tire Cleaning Machine Car Wheel Washing Machine Rust Removing Specification:
| Model | T-90S |
| Tank Dimension (mm) | 900*560*900mm (L*W*H) |
| Tank total capacity | 453.6L |
| Tank material | SUS 304 |
| Housing Material | Stainless Steel |
| Ultrasonic frequency | 28kHz |
| Ultrasonic transducer numbers | 90pcs |
| Electronic power | 4500W |
| Heater’s (Hot Plate) Power | 12KW |
| Heating Temp | 30~80 °C adjustable |
| Timer control | 0~30 min adjustable |
| Cleaning tank’s power requirement | AC 380V/415V, 3 phase; 50/60Hz |
| Generator power requirement | AC 220V, 1 phase |
| Suitable tyre size | Diameter: 500~800mm; Width: 135~350mm |
| Electronic generator | 3 units seperate generators |
| Maximum weight of Wheels | 50kg |
| Others | With pneumatic lifting unit |
Ultrasonic Cleaner Application:
1.Clean all types of tyre/wheel/rim
Features:
Wheel /Tyre Industrial Cleaning Machaine enough for most vertical blinds as well
2 Separate Tanks – one for cleaning and one for rinsing
3 Drain Pipes – one for each tank
4.Industrial-Grade Transducers: very reliable, efficient, and powerful
5.Durable Stainless Steel Tank
6.Digital Timer for Controlling the Ultrasonic Power
7.Temperature-Controlled Heating
8.Sturdy Casters for Easy Transporting
9.1 Year Warranty
10. ultrasonic wave generator control
AG Sonic has been manufacturing ultrasonic parts cleaners for years, providing manufacturers with the highest-quality systems available.
[wpforms id=”13019″]
Why Choose Us
A: Ultrasonic Cleaning is the use of sound waves through water to create microscopic implosions, removing contamination from surfaces, nooks and crannies.
A: The technical process: Ultrasonic energy is introduced into the body of water via transducers.
A: We recommend that you choose the right cleaning agent by the cleaning effect you want to achieve.
A: Most poor cleaning usually results from improper control of one or more process variable(s); such as choosing the wrong detergent solution, insufficient heat, or not allowing enough time for the particular soil to be removed. If you suspect that your ultrasonic cleaner is not cavitating properly, there are two simple tests you can perform: the “glass slide” test and the “foil” test.
A:Rinsing is recommended to remove any chemical residue, which could be harmful to the part. Parts can be rinsed right in your ultrasonic cleaner, using a clean water bath, or in a separate tub containing tap, distilled or deionised water.
A: Heat usually enhances and speeds up the cleaning process, and most detergent solutions are designed to work best at an elevated temperature. The best way to find the optimum temperature, which will give you the fastest, cleanest and safest results, is to run tests. Usually, the best results are within the 50°C to 75°C range.
A: I would definitely recommend, especially the particular unit we have.
A: We did plan originally to get a washer disinfector, but we didn’t think it was worthwhile investment compared to the ultrasonic cleaner.
A:It really speeds up the decontamination process and our staff don’t have hand scrub equipment,.
Contact to our expert get the best solution for your requirements.
